Double Sided Immersion Gold Surface Treatment 2 Layers FR4 Electronic Circuit Board





Detail Specifications for this 1.0mm board thickness 1oz green somdask smart home printed circuit board PCB:



 Layers  2
 Material  FR-4
 Board Thickness  1.6mm
 Copper Thickness  1/1 oz
 Surface Treatment  ENIG 1u"
 Soldmask & Silkscreen  Green & White
 Quality Standard  IPC Class 2, 100% E-testing
 Certificates  TS16949, ISO9001, UL, RoHS







What KAZ can do for you & your company



  • PCB manufacturing
  • components sourcing
  • PCB SMT/DIP services






In order to get a full quotation of the PCB/PCBA, pls provide below information:



  • Gerber, with detail specification of the PCB
  • BOM List with excel fomart
  • Photoes of the PCBA (if you have done this project before, if not, just ignore this)





Company Informaiton:

    KAZ Circuit is a professional PCB manufacturer from China since 2007, also provide PCB Assembly service for our customers. Now with about 300 employees. Certified with ISO9001,TS16949, UL, RoHS. We are confident to provide you quality products with factory-directed price within the fastest delivery time!




Manufacturer Capacity:



Capacity Double Sided: 12000 sq.m / month
Multilayers: 8000sq.m / month
Min Line Width/Gap 4/4 mil (1mil=0.0254mm)
Board Thickness 0.3~4.0mm
Layers 1~20 layers
Material FR-4, Aluminum, PI
Copper Thickness 0.5~4oz
Material Tg Tg140~Tg170
Max PCB Size 600*1200mm
Min Hole Size 0.2mm (+/- 0.025)
Surface Treatment HASL, ENIG, OSP







    Printed circuit boards (PCBs) are the basic components of electronic equipment and are the physical foundation that connects and supports various electronic components. It plays a vital role in the functionality and reliability of electronic systems.



Key aspects of electronic printed circuit boards include:



Layers and composition:

    PCBs are typically made up of multiple layers, with the most common being a 2- or 4-layer design.

    These layers are made of copper serving as conductive paths and a non-conductive substrate such as fiberglass (FR-4) or other specialty materials.

    Other layers may include power and ground planes for power distribution and noise reduction.



Interconnects and Traces:

    The copper layer is etched to form conductive traces that serve as pathways for electrical signals and power.

    Vias are plated-through holes that connect traces between different layers, enabling multi-layer interconnections.

    Trace width, spacing, and routing patterns are designed to optimize signal integrity, impedance, and overall electrical performance.



Electronic component:

    Electronic components, such as integrated circuits, resistors, capacitors, and connectors, are mounted and soldered to the PCB.

    The placement and routing of these components is critical to ensuring optimal performance, cooling, and overall system functionality.



PCB manufacturing technology:

    PCB manufacturing processes typically involve steps such as lamination, drilling, copper plating, etching and solder mask application.

    Advanced technologies such as laser drilling, advanced plating, and multi-layer co-lamination are used in specialized PCB designs.



PCB Assembly & Soldering:

    Electronic components are placed and soldered onto the PCB either manually or automatically using techniques such as through-hole soldering or surface mount soldering.

    Reflow soldering and wave soldering are common automated processes for connecting components.



Testing & Quality Control:

    The PCB undergoes various testing and inspection processes such as visual inspection, electrical testing, and functional testing to ensure its reliability and performance.

    Quality control measures, such as in-process inspections and design-for-manufacturability (DFM) practices, help maintain high standards in PCB production.



    Electronic PCBs are used in a wide variety of applications, including consumer electronics, industrial equipment, automotive systems, medical devices, aerospace and telecommunications equipment, and more. Continuing advances in PCB technology, such as the development of high-density interconnect (HDI) PCBs and flexible PCBs, have enabled the creation of smaller, more powerful, and more energy-efficient electronic devices.

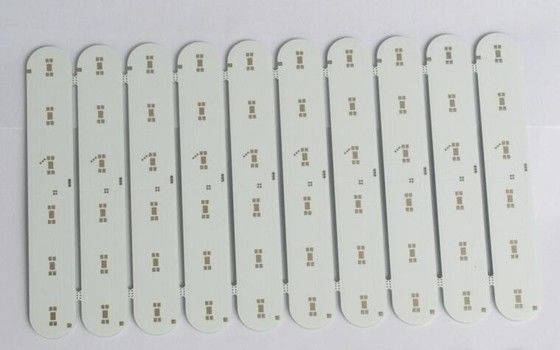

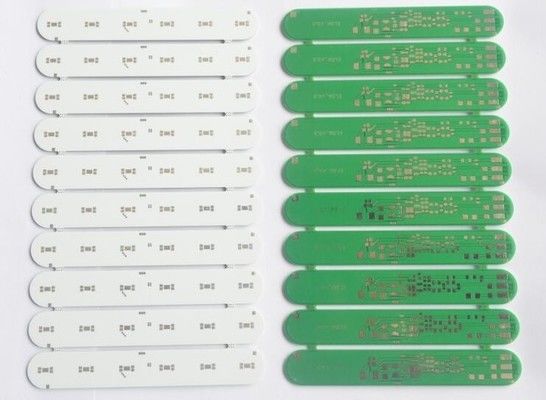

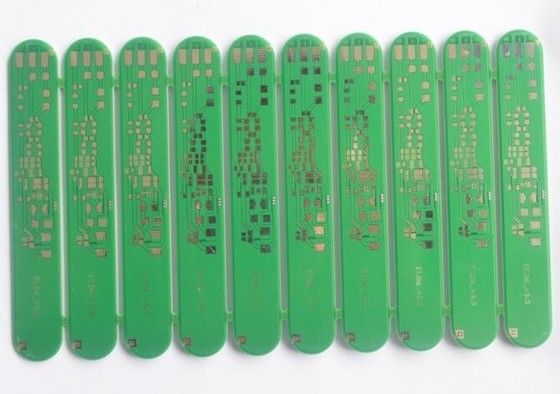

More detail photoes for this double sided FR4 PCB with green soldmask immersion gold surface treatment
