| Brand Name: | KAZpcb |
| Model Number: | PCB-B-001 |
| MOQ: | 1 |
| Price: | 1usd/pc |
| Payment Terms: | Paypal/, T/T, Western Union |
| Supply Ability: | 10000-20000 square meters per month |

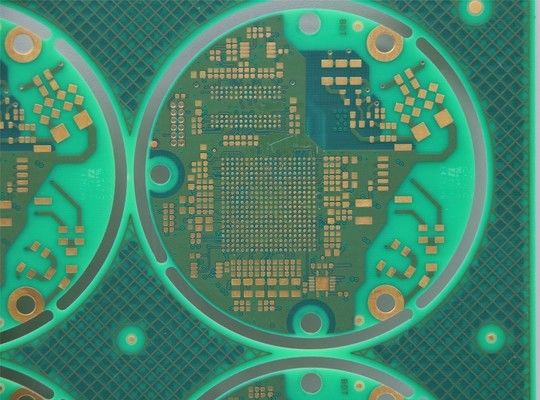

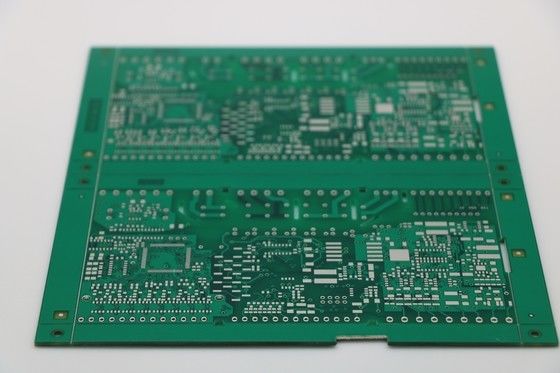

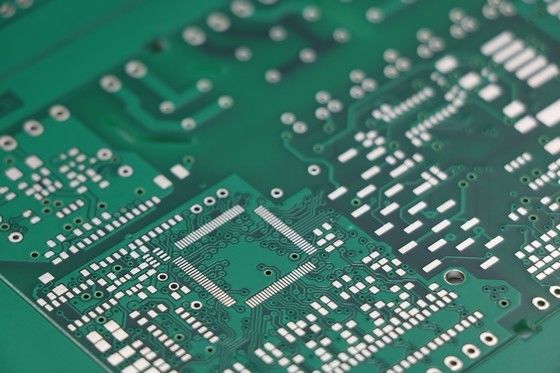

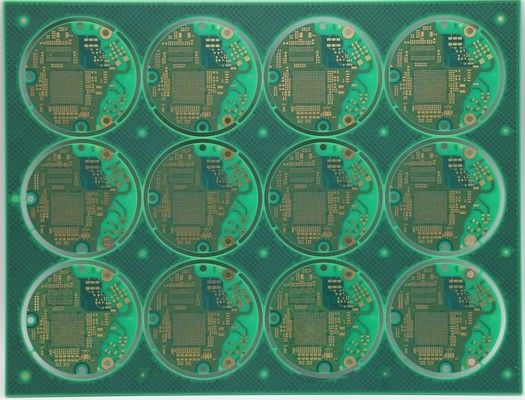

FR4 Multilayer Printed Circuit Boards Green Soldermask White Silkscreen PCB Assembly Service Multilayer PCB Board
Detail specification about Mobilephone Blue Soldermask White Silkscreen FR4 Electronic Printed Circuit Board
| Categary | PCB |
| Layers | 4L |
| Material | FR-4 |
| Copper thickness | 1/1OZ |
| Board thickness | 1.6mm |
| Soldermask | Green |
| Quality standard | IPC Class 2, 100% E-testing |
| Certificates | TS16949, ISO9001, UL, RoHS |
Brief introduction about Shenzhen KAZ Circuit Co,. Ltd.
Brief introduction
Shenzhen KAZ Circuit Co., Ltd, found in 2007, is a PCB and PCBA custom-made manufacturer. It's commitment to high precision single, double-sided, multilayer printed circuit board and metal substrate circuit board production,which is a hightech enterprises including amnufacture, sales, service and so on.
What we can do for you
Prompt delivery: 2L: 3-5days
4L: 5-7days
24h/48h: urgent order
Company size: About 300 employees
What KAZ Circuit can do for you:
To get a full quotation of the PCB/PCBA, pls provide the information as below:
Manufacturer Capacity:
| Capacity | Double Sided: 12000 sq.m / month Multilayers: 8000sq.m / month |
| Min Line Width/Gap | 4/4 mil (1mil=0.0254mm) |
| Board Thickness | 0.3~4.0mm |
| Layers | 1~20 layers |
| Material | FR-4, Aluminum, PI |
| Copper Thickness | 0.5~4oz |
| Material Tg | Tg140~Tg170 |
| Max PCB Size | 600*1200mm |
| Min Hole Size | 0.2mm (+/- 0.025) |
| Surface Treatment | HASL, ENIG, OSP |
Multilayer PCB is a printed circuit board made of more than two layers of copper foil. It consists of an inner copper foil, an insulating substrate and an outer copper foil, and the interconnection between the layers is achieved by drilling and copper plating. Compared with single-layer or double-layer PCBs, multilayer PCBs can achieve higher wiring density and complex circuit design.
Advantages of multi-layer PCBs:
Higher wiring density and complex circuit design capabilities
Better electromagnetic compatibility and signal integrity
Shorter signal transmission paths, improved circuit performance
Higher reliability and mechanical strength
More flexible power and ground distribution
Composition of multi-layer PCBs:
Inner copper foil: Provides conductive layer and wiring
Insulating substrate (FR-4, high-frequency low-loss dielectric, etc.): Isolates and supports each copper foil layer
Outer copper foil: Provides surface wiring and interface
Perforated metallization: Realizes electrical connection between layers
Surface treatment: HASL, ENIG, OSP and other surface treatment processes
Design and manufacture of multi-layer PCBs:
Circuit design: Signal integrity, power/ground integrity design of multi-layer boards
Layout and wiring: Reasonable layer allocation and routing optimization
Process design: Aperture size, layer spacing, copper foil thickness, etc.
Manufacturing process: Lamination, drilling, copper plating, etching, surface treatment, etc.
More photos
