Green Soldmask SMT PCB Assembly Prototype Development High-mix Low-volume Production

prototype development high-mix low-volume production SMT PCB Assembly


Detail Specifications:

What KAZ Circuit can do for you:

• PCB & PCBA Design
• PCB manufacturing (prototype, small to medium, mass production)
• Components Sourcing
• PCB Assembly/SMT/DIP

To get a full quotation of the PCB/PCBA, pls provide the information as below:

• Gerber File, with detail specification of the PCB
• BOM List (Better with excel fomart)
• Photoes of the PCBA (If you have done this PCBA before)

Manufacturer Capacity:

SMT Capacity

Prototype development high-mix low-volume production SMT PCB Assembly
Definition:
Prototype development high-mix low-volume production SMT PCB assembly refers to the process of assembling printed circuit boards (PCBs) for prototype development and low-volume production runs using surface mount technology (SMT). SMT is a method of assembling electronic components directly onto the surface of a PCB, rather than inserting them into holes in the board.
Applications:
Prototype development high-mix low-volume production SMT PCB assembly is ideal for:
Creating prototypes of new electronic products
Producing small batches of custom PCBs
Manufacturing low-volume production runs of PCBs
Advantages:
Reduced size and weight: SMT components are smaller and lighter than traditional through-hole components, resulting in smaller and lighter PCBs.
Higher density: SMT allows for a higher density of components on a PCB, enabling more functionality in a smaller space.
Improved performance: SMT components have shorter leads, which reduces inductance and capacitance, leading to improved signal integrity and performance.
Lower cost: SMT assembly is more automated than traditional through-hole assembly, resulting in lower labor costs.
Increased reliability: SMT components are less likely to experience solder joint failures due to the shorter leads and more precise soldering process.
Process:
The prototype development high-mix low-volume production SMT PCB assembly process typically involves the following steps:
Design: The PCB is designed using computer-aided design (CAD) software.
Fabrication: The PCB is fabricated using a process called photolithography.
Solder paste application: Solder paste is applied to the PCB at the locations where the components will be placed.
Component placement: SMT components are placed on the PCB using a pick-and-place machine.
Reflow soldering: The PCB is passed through a reflow oven, which heats the solder paste and reflows it, forming solder joints between the components and the PCB.
Inspection: The PCB

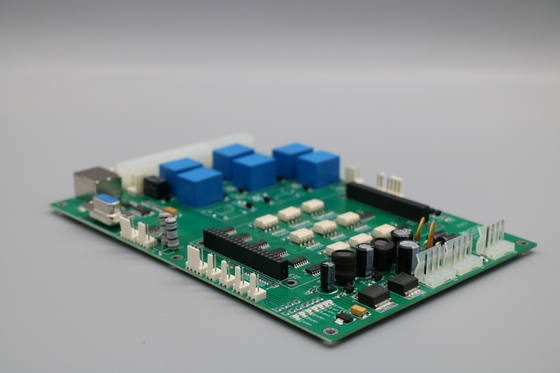

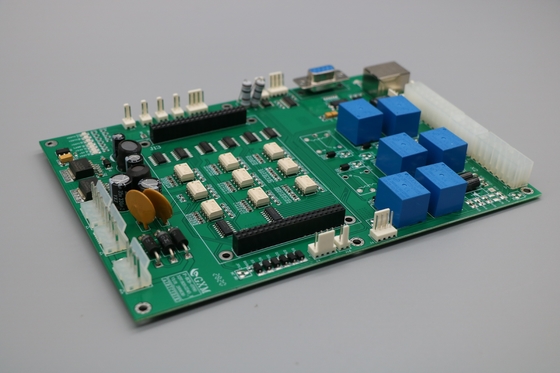

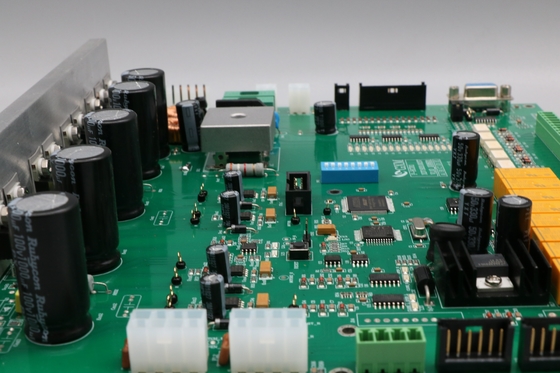

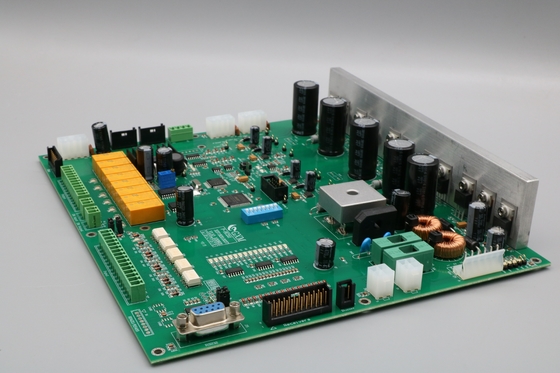

Photoes of this prototype development high-mix low-volume production SMT PCB Assembly
