| Brand Name: | KAZ |
| Model Number: | KAZA-B-040 |
| MOQ: | 1 Unit |
| Price: | 0.1-20 USD / Unit |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C, D/A |
| Supply Ability: | 2000 m2 / Month |
Professional OEM Computer Motherboard pcb factory And Multilayer Rigid Printed Circuit Boards.0.5-14oz.0.0.10 mm5-14oz
1. Features
1. One Stop OEM Service, Made in Shenzhen of China
2. Manufactured by Gerber File and BOM List from Customer
3. FR4 Material, Meet 94V0 standard
4. SMT, DIP technology suport
5. Lead Free HASL, Environmental Protection
6. UL, CE, ROHS Compliant
7. Shipping By DHL,UPS, TNT, EMS or Customer requirement
2. PCB Technical capability
| SMT | Position accuracy:20 um |
| Components size:0.4×0.2mm(01005) —130×79mm,Flip-CHIP,QFP,BGA,POP | |
| Max. component height::25mm | |
| Max. PCB size:680×500mm | |
| Min. PCB size:no limited | |
| PCB thickness:0.3 to 6mm | |
| PCB weight:3KG | |
| Wave-Solder | Max. PCB width:450mm |
| Min. PCB width: no limited | |
| Component height:Top 120mm/Bot 15mm | |
| Sweat-Solder | Metal type :part, whole, inlay, sidestep |
| Metal material:Copper , Aluminum | |
| Surface Finish:plating Au, plating sliver , plating Sn | |
| Air bladder rate:less than20% | |
| Press-fit | Press range:0-50KN |
| Max. PCB size:800X600mm | |
| Testing | ICT,Probe flying,burn-in,function test,temperature cycling |
Certifications:
ISO9001 / ISO14001 / ISO45001 (Military) / TS16949 (Automotive) / RoHS / UL
A computer circuit board, also known as a motherboard or mainboard, is the main printed circuit board (PCB) in a computer system. They act as central hubs, connecting the various components within the computer and facilitating communication between them.
Key functions and features of computer circuit boards include:
Mainboard structure:
Motherboards typically follow industry-standard form factors, such as ATX, micro-ATX, or mini-ITX, which define the motherboard's physical size and layout.
They provide slots and receptacles for connecting the central processing unit (CPU), memory modules (RAM), expansion cards (such as graphics cards, network cards), and other peripherals.
Chipsets and buses:
The motherboard contains a chipset, which is a set of integrated circuits that manage communication between the CPU, memory, and other system components.
They provide various bus interfaces, such as PCI, PCI Express, and SATA, to connect and transfer data between different components.
Power transmission and management:
The motherboard includes the power connector and circuitry used to distribute power to the CPU, RAM and other components.
They may also contain power management features such as voltage regulation and thermal monitoring to ensure stable and efficient power delivery.
I/O port:
The motherboard provides a variety of input/output (I/O) interfaces, such as USB ports, audio connectors, Ethernet ports, and display outputs, to support the connection of external devices and peripherals.
BIOS & Firmware:
The motherboard usually includes Basic Input/Output System (BIOS) or Unified Extensible Firmware Interface (UEFI) firmware, which is responsible for initial system boot and configuration.
BIOS/UEFI firmware allows the user to access and configure various hardware settings such as boot sequence, overclocking, and system diagnostics.
Extended functions:
Motherboards often have expansion slots, such as PCI, PCI Express, and M.2 slots, allowing users to install additional hardware components such as graphics cards, network cards, and solid-state drives (SSDs).
Cooling & Thermal Management:
Motherboards may include heat sinks, fan headers, or integrated cooling solutions to manage cooling of the CPU and other heat-generating components.
Computer circuit boards are the foundation of desktop, laptop, and server computers and enable the integration and coordination of various hardware components to provide computing capabilities. Motherboard designs and features have evolved over time, keeping pace with advances in CPU, memory, and storage technology.

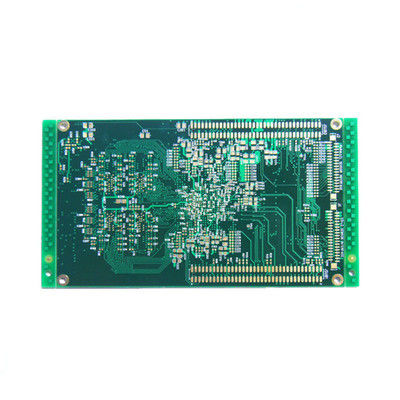

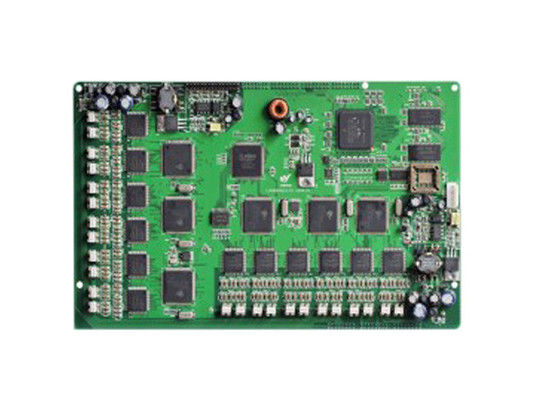

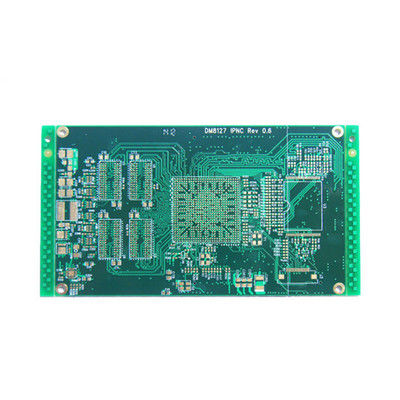

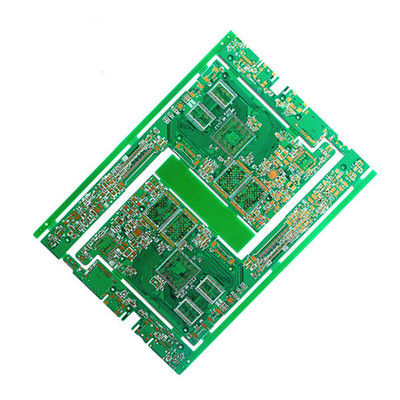

2. PCB Pictures
