PCB Manufacturer FR4 Green Soldmark Rogers Double Sided Dip Pcba Assembly
1. Features
1. One Stop OEM Service, Made in Shenzhen of China
2. Manufactured by Gerber File and BOM List from Customer
3. FR4 Material, Meet 94V0 standard
4. SMT, DIP technology suport
5. Lead Free HASL, Environmental Protection
6. UL, CE, ROHS Compliant
7. Shipping By DHL,UPS, TNT, EMS or Customer requirement
2. PCBA Technical capability
| SMT | Position accuracy:20 um |
| Components size:0.4×0.2mm(01005) —130×79mm,Flip-CHIP,QFP,BGA,POP | |
| Max. component height::25mm | |
| Max. PCB size:680×500mm | |
| Min. PCB size:no limited | |
| PCB thickness:0.3 to 6mm | |
| PCB weight:3KG | |
| Wave-Solder | Max. PCB width:450mm |
| Min. PCB width: no limited | |
| Component height:Top 120mm/Bot 15mm | |
| Sweat-Solder | Metal type :part, whole, inlay, sidestep |
| Metal material:Copper , Aluminum | |
| Surface Finish:plating Au, plating sliver , plating Sn | |
| Air bladder rate:less than20% | |
| Press-fit | Press range:0-50KN |
| Max. PCB size:800X600mm | |
| Testing | ICT,Probe flying,burn-in,function test,temperature cycling |
Automotive PCBs are essential components in modern vehicles and play a vital role in electronics and control systems. These PCBs are designed to withstand the harsh environments and stringent requirements of the automotive industry.
Key features and considerations for automotive PCBs include:
Reliability and Durability:
Automotive PCBs must be able to operate reliably under the extreme temperatures, vibrations and other environmental stresses encountered by vehicles.
Strong materials like high-quality copper, premium laminates, and specialized coatings are used to ensure long-term performance.
Security and Compliance:
Automotive PCBs are subject to strict safety standards and regulatory requirements, such as those set by organizations such as ISO (International Organization for Standardization) and IATF (International Automotive Task Force).
Designs must comply with these standards to ensure the safety and reliability of vehicle systems.
Miniaturization and complexity:
Automotive electronics are becoming increasingly complex, requiring more advanced PCB designs with higher component density and smaller form factors.
Multilayer PCBs, fine-pitch components, and advanced interconnect technologies are often used to meet space and performance requirements.
Thermal Management:
Automotive PCBs often operate in high-temperature environments, requiring effective thermal management solutions such as heat sinks, thermal vias, and specialized cooling technologies.
electromagnetic compatibility (EMC):
Automotive PCBs must be designed to minimize electromagnetic interference (EMI) and ensure adequate electromagnetic compatibility (EMC) with other vehicle systems.
Shielding, grounding, and careful routing of signal lines are vital considerations.
Automotive Grade Components:
Automotive PCBs use specialized electronic components that are suitable for the harsh operating conditions of the vehicle, such as higher temperature range, shock resistance and longer service life.
Major automotive PCB applications include engine control units (ECUs), transmission control modules, infotainment systems, sensor interfaces, and advanced driver assistance systems (ADAS).
The automotive PCB industry continues to evolve, with advancements in materials, design techniques, and manufacturing processes to meet the increasing reliability, performance, and safety requirements of modern vehicles.

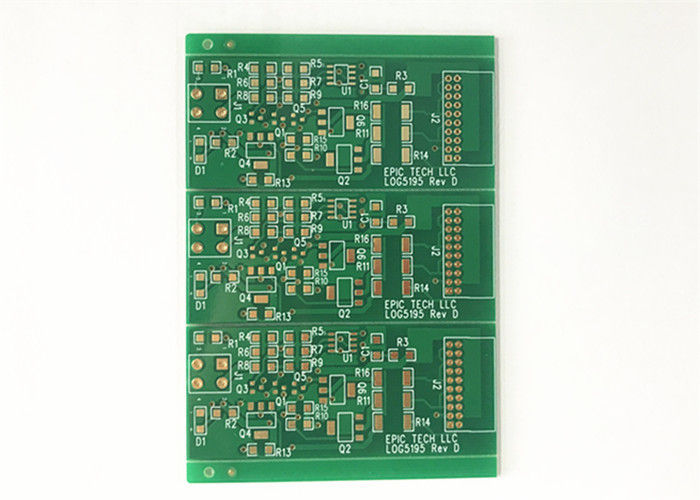

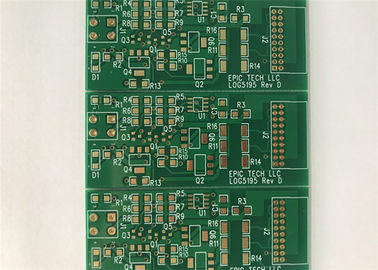

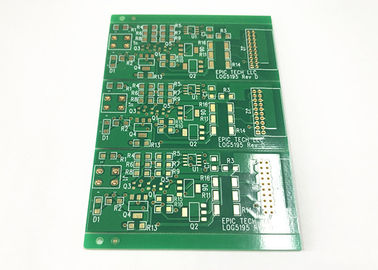

2. PCBA Pictures
