FR4 1.6mm 1oz Heavy Copper PCB printed circuit board manufacturer Heavy Copper PCB

FR4 1.6mm 1oz Heavy Copper PCB printed circuit board manufacturer Heavy Copper PCB


Detail Specifications:



What KAZ Circuit can do for you:


• PCB & PCBA Design
• PCB manufacturing (prototype, small to medium, mass production)
• Components Sourcing
• PCB Assembly/SMT/DIP


To get a full quotation of the PCB/PCBA, pls provide the information as below:


• Gerber File, with detail specification of the PCB
• BOM List (Better with excel fomart)
• Photoes of the PCBA (If you have done this PCBA before)


Company Informaiton:

    KAZ Circuit is a professional PCB manufacturer from China since 2007, also provide PCB Assembly service for our customers. Now with about 300 employees. Certified with ISO9001,TS16949, UL, RoHS. We are confident to provide you quality products with factory-directed price within the fastest delivery time!


Manufacturer Capacity:




SMT Capacity



    Thick copper PCB is a special type of printed circuit board that has a thicker copper layer compared to a standard PCB. This increased copper thickness provides several advantages and is suitable for specific applications.

Key features of thick copper PCB include:

Copper thickness:
    A standard PCB’s copper layer thickness is typically 1 to 2 ounces per square foot (oz/ft²), which equates to a thickness of approximately 35-70 microns.
    Thick copper PCBs have significantly thicker copper layers, typically 3 oz/sq ft to 12 oz/sq ft or more, which equates to a thickness of 105-420 microns.
Power handling capability:
    Increased copper thickness enables thick copper PCBs to handle higher current and power levels without excessive heat build-up or voltage drops.
    This makes them ideal for power-intensive applications such as power supplies, motor drives and high-current electronic systems.
Thermal management:
    Thicker copper layers act as effective heat sinks, improving heat dissipation from heating components on the PCB.
    This enhanced thermal management capability is critical for high-power, high-current, or high-density circuit designs.

Electrical conductivity
    The increased copper thickness reduces the trace's resistance, improving overall circuit performance and signal integrity.
    This is beneficial for applications requiring low impedance, high current circuits such as power electronics or high-speed digital designs.
Stiffness and Mechanical Strength:
    Due to the increased copper thickness, thick copper PCBs tend to be stronger and mechanically stronger, making them suitable for applications with vibration, shock or stress requirements.
Manufacturing Challenge:
     Making thick copper PCBs requires specialized manufacturing processes such as advanced drilling techniques, enhanced plating, and specialized etching methods.
    These manufacturing processes can be more complex and costly compared to standard PCB production.
Applications of thick copper PCB include:
    Power electronics, such as inverters, converters and motor drives
    High current circuits, including industrial control and distribution systems
    Automotive electronics including electric vehicles and hybrid powertrains
    Aerospace and defense applications with strict power and thermal requirements
    Telecommunications and networking equipment with high current and power requirements

    Thick copper PCBs can be used in the design and development of rugged, reliable and high-performance electronic systems in a variety of industries where power handling, thermal management and electrical conductivity are key factors.

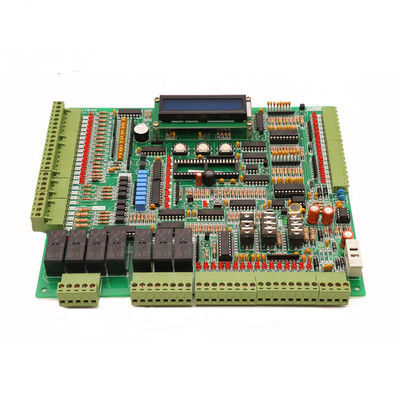

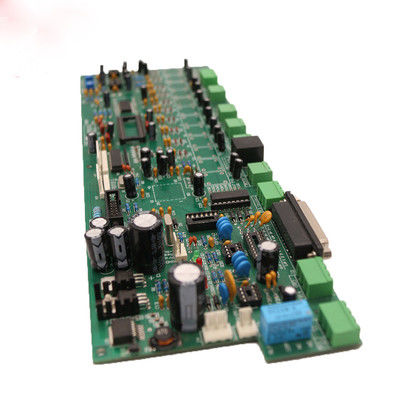

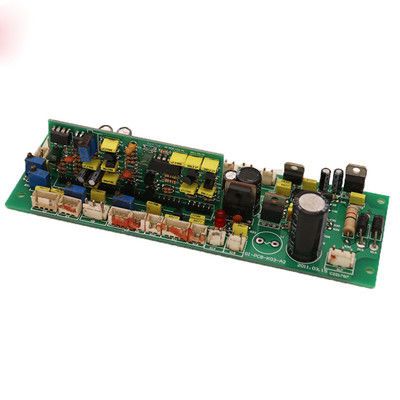

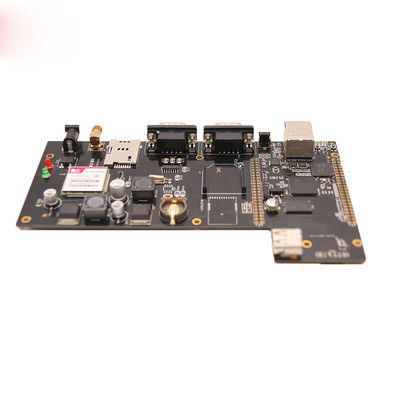

More photoes of FR-4 1.6mm Board With Red Gum 1oz Copper Driving Power Supply PCB Heavy Copper PCB
